Tracking System for Emergency Field Work Equipment

Our advanced tracking system for field work equipment enhances emergency operations by providing real-time geographical positions of team members. Monitor and coordinate effectively from a specialized computer in your coordination vehicle.

1/10/20252 min read

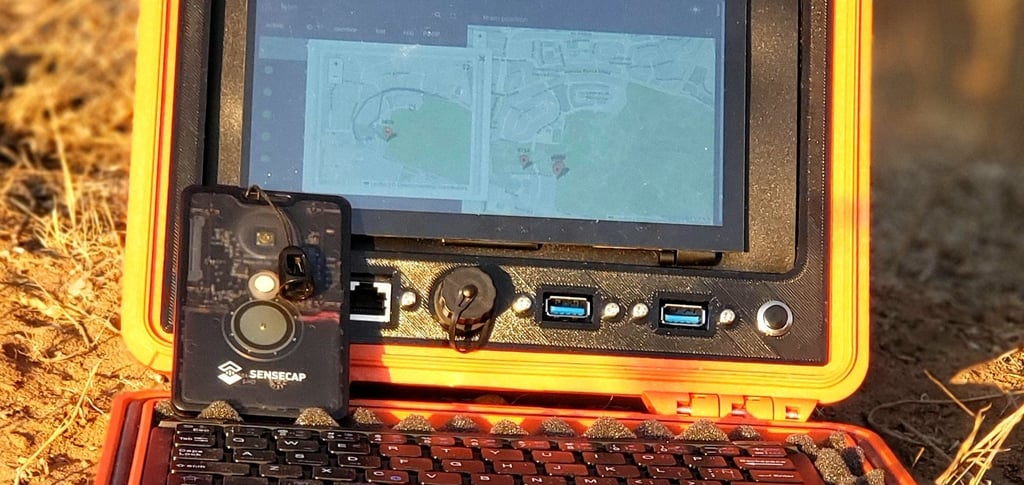

Team Tracker

In the context of emergency and rescue operations, the ability to track work teams is essential. A tracking system, based on Lora Mesh networks, allows real-time monitoring of both personnel and assets in the field. With a range of up to 10 km, depending on terrain conditions, this type of technology is especially relevant in situations where conventional communication may fail, ensuring that rescue teams maintain their effectiveness even in the most challenging conditions.

Team Tracker Features

The work equipment tracking system is characterized by its independence from external networks, which provides greater reliability. This is crucial in remote environments where traditional connectivity may be unstable or non-existent. Thanks to Lora Mesh technology, the system can create a robust communications network that allows the transmission of precise and real-time data. By using devices designed to operate in difficult terrain, this system ensures that work teams maintain constant contact with their coordinators, facilitating resource management and tactical deployment in emergency situations.

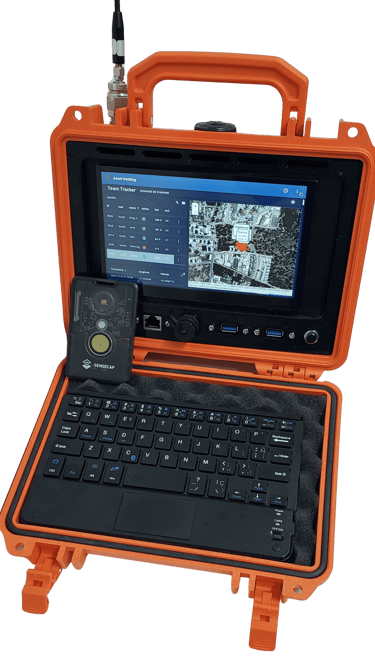

Hardware Spec

  • CPU: Raspberry Pi 5, Quad-core Cortex-A64@ 2.4GHz

  • RAM: 8GB

  • eMMC: 128GB

  • Display: 1 x 7 inch 1024x600 60Hz IPS Capacitive Touch Screen

  • Keyboard: 1 x mini keyboard with trackpad

Communications

  • Lora Meshtastic SX1262 module with external antenna operating 915 Mhz band

  • GPS

  • Wi-Fi, Bluetooth

  • Ethernet

  • 2 x USB 3.0

  • 4 x trackers SenseCap T1000-E (you can add those that are necessary)

Standards

  • EMC

    • ESD: EN61000-4-2, Level 3

    • EFT: EN61000-4-4, Level 2

    • Surge: EN61000-4-5, Level 2

  • Certifications

    • CE, FCC

    • TELEC

    • RoHS

Others

  • Dimentions: 240 x 200 x 11 mm / 1.8 kg

  • Power: 12V, 5A con / 220V/12V or vehicular connector for 12V + UPS de 3700 mA

  • Operation temperature: -20°C to +55°C

  • Humidity: 0% - 85% (non-condensing)

  • Protecting box: Pelican 1150

  • Warranty: 1 year

Benefits of Implementing a Tracker System

The implementation of a tracking system for field work teams offers multiple benefits. Firstly, it improves coordination between team members, which is vital in rescue operations. Each member can be located precisely and in real time, which allows better coverage over large areas and can speed up responses to critical situations. In addition, this technology contributes to the safety of operations, minimizing the risks associated with loss of communication or lack of information about the status of the equipment and assets involved.

In summary, having an efficient equipment tracking system in the field transforms the way we operate in emergency situations. The combination of advanced technology with a focus on the functionality of a robust and resilient system ensures that rescue teams can act with precision and speed, optimizing their efforts for the safety and well-being of those in danger.
